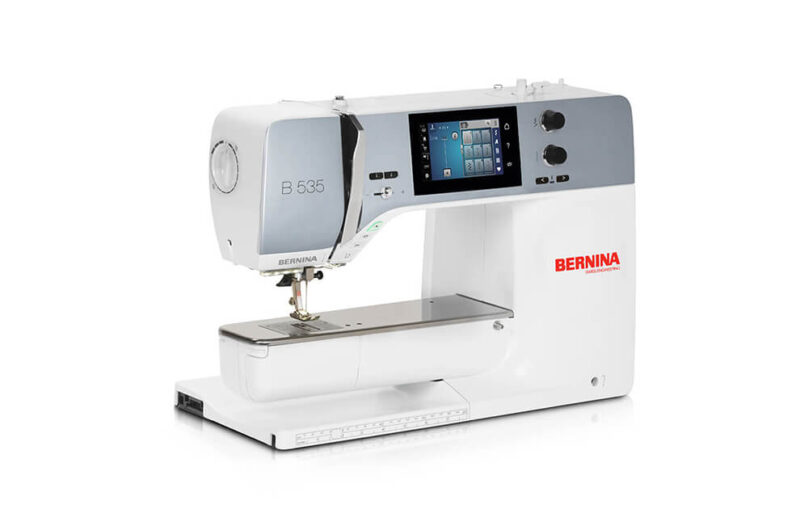

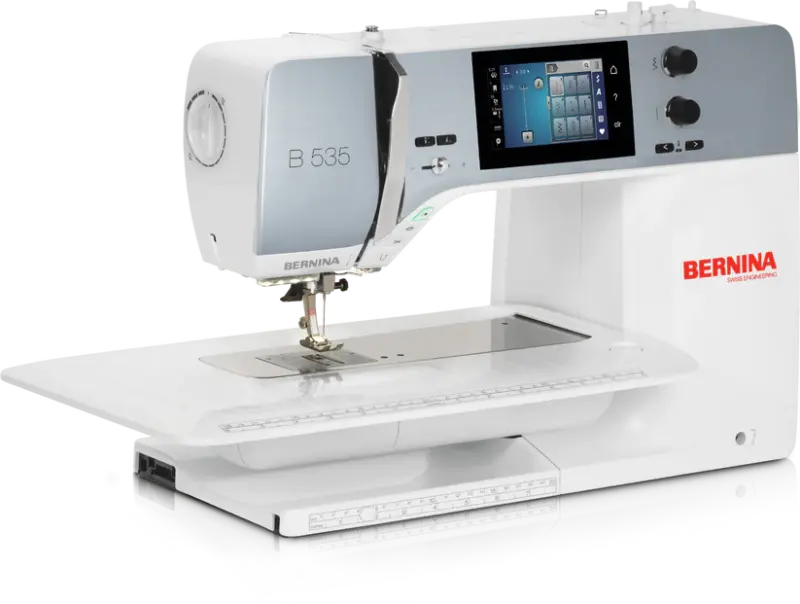

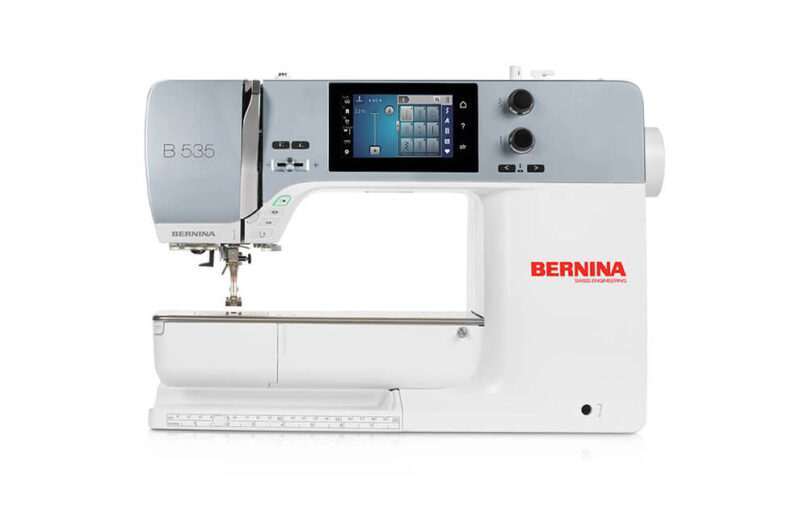

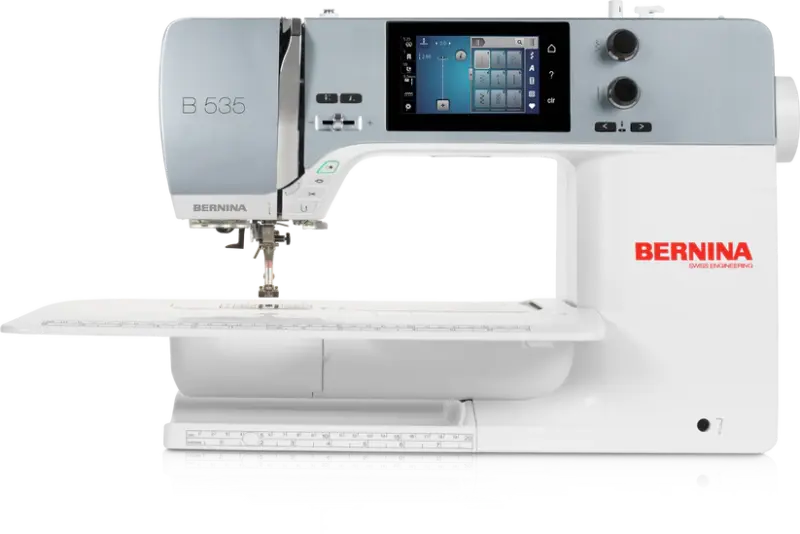

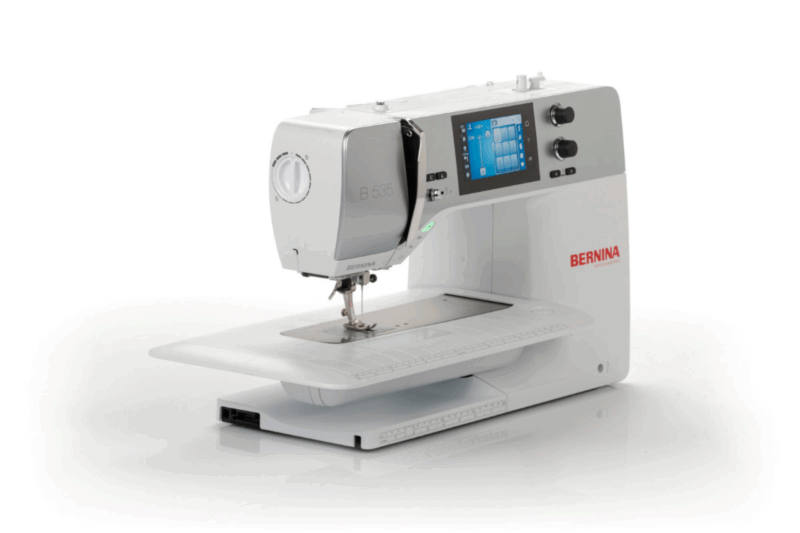

BERNINA 535 E Sewing and Embroidery Machine
Crafted specifically for sewists, the BERNINA 535 E sewing machine and embroidery machine ensures impeccable stitch quality with its powerful, fast, and precise sewing capabilities. Seamlessly handle large projects with ease, and enjoy the convenience of automatic thread cutting, making your sewing experience efficient and enjoyable.

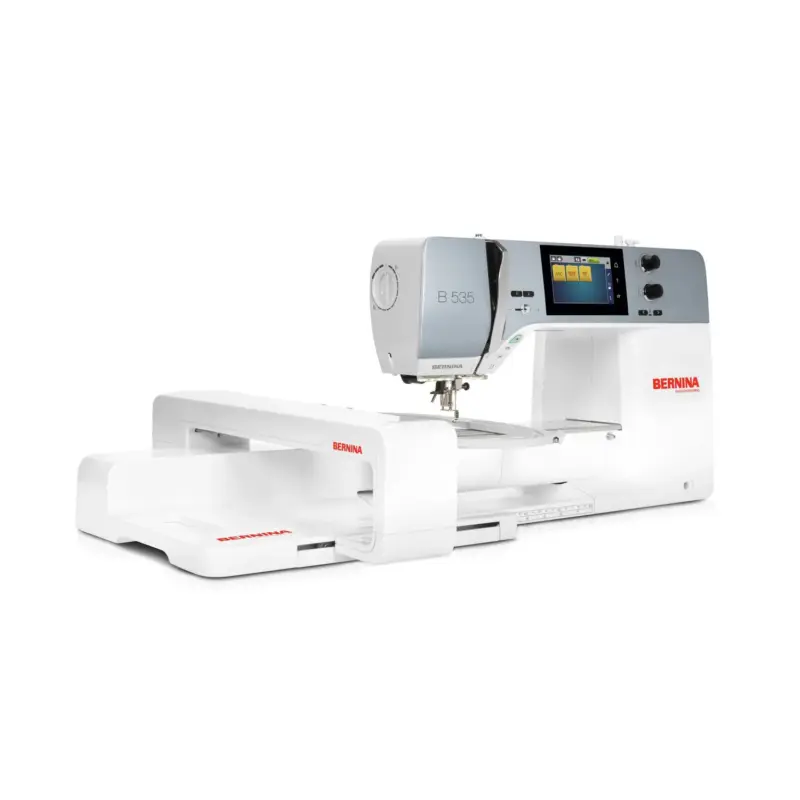

Included Embroidery Module M (SDT)
Enhance your sewing experience with the Embroidery Module with Smart Drive Technology (SDT). This innovative addition elevates your machine’s capabilities, ensuring smoother movement, quieter operation, and up to 55% higher embroidery speed. Upgrade your machine to unlock a world of creative possibilities with stunning embroidery designs and impeccable stitch quality.

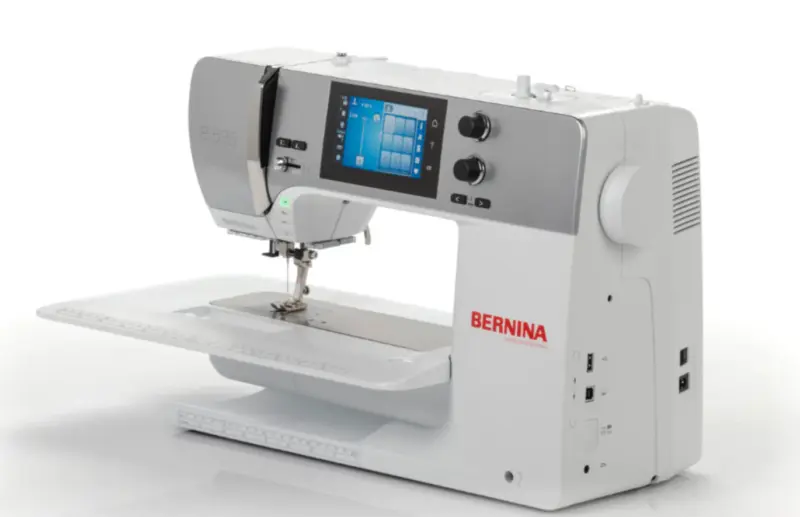

The BERNINA 535 E has More Space for Creative Freedom
The BERNINA 535 provides ample space for creative freedom, with an extended freearm offering 8.5 inches right of the needle. This generous sewing area allows you to tackle large projects with ease, giving you enough space to bring your creative visions to life. Additionally, you have the option to add an embroidery module for even more versatility.
Ask Your On-Screen Support
Access on-screen support effortlessly with the modern, colorful touch screen on the BERNINA 535, featuring intuitive navigation for easy use. Utilize the Sewing Consultant feature to guide you in finding the optimal settings for your project, and quickly make any suggested adjustments using the multifunction knobs for seamless operation.
Sew Quieter, Faster, Longer, Better
BERNINA 535 E's Automatic Features Save Time
Save time during your sewing projects with the BERNINA 535’s automatic thread cutter feature. With just the press of a button, your threads are effortlessly cut, and the needle is raised automatically, allowing you to focus more on your creative endeavors.
Get the Right Pressure Every Time with the BERNINA 535 E
Ensure optimal stitching results with the BERNINA 535’s pressure adjustment feature, which automatically adjusts to suit your selected stitch and fabric type. Whether you’re sewing thin or thick materials, the machine adapts by increasing pressure for delicate fabrics and reducing it for thicker ones, ensuring consistent stitching quality across various materials. You can also customize the basic pressure setting to meet your specific sewing needs.
Perfect Tensions for Perfect Stitches
With the Adaptive Thread Tension feature of the BERNINA 535, you can achieve optimal thread tension effortlessly, ensuring beautiful stitch results every time. Enjoy precise and powerful sewing without any worries, as this innovative technology automatically adjusts tension for perfect stitches on both sides of the fabric.
BERNINA 535 E Features
General:
- Multi-function Knobs
- LED Sewing Light: 12
- Semi-Automatic Needle Threader
- Manual Thread Cutters: 4
- Total Stitch Control
- BERNINA Adaptive Thread Tension
- Hook System: BERNINA Hook
- Jumbo Bobbin with 70% more Capacity
- Bobbin Winding while Sewing/Embroidering
- Powerful DC Motor
- Hammer Mode
- BERNINA Free Hand System (FHS)
- BERNINA Foot Control
- Thread-Up Command
- Automatic Thread Cutter
- Adjustable Presser Foot Pressure
- Needle Reminder
- Upper Thread Sensor
- Tutorial
- On-Screen Help
- Retractable Feed Dog
- Slide Speed Control
Sewing and Quilting:
- Maximum Sewing Speed (stitches per minute): 1000
- Maximum Stitch Width (mm): 5.5
- Maximum Stitch Length (mm): 6
- Needle Positions: 11
- Automatic Buttonhole
- Manual Multi-Step Buttonhole
- Import/Export Stitches via USB
- Memory (short-term/altered stitches)
- Creative Consultant
- Drag & Drop
- Pattern Repeat (up to 9): 1-9
- Pattern Start/End Function
- Pattern End Programmable
- Pattern Mirroring
- Reverse Sewing
- Automatic Securing Function
- Programmable Securing Function
- BSR Functionality, Straight Stitch, and Zigzag
- Start/Stop Button (stitching without foot control)
- Number of Stitch Patterns (included alphabet): 1048
- Sewing Alphabets: 5
- Decorative Stitches: 300
- Button Sew-On Program
- Buttonholes (included eyelet): 14
- Utility Stitches: 30
- Quilting Stitches: 45
- Darning Programs
Embroidery:
- Maximum Embroidery Speed (stitches per minute): 1000
- Freearm Embroidery
- Built-In Embroidery Designs: 50
- Embroidery Alphabets: 4
- On-Screen Editing of Designs
- Duplicate/Add Designs
- Change Design Size Proportionally
- Change Design Size Non-Proportionally
- Move, Rotate, and Mirror
- WordArt
- Drag and Drop
- Absolute Check Design Positioning
- Check Design Size
- Adjust Stitch Density
- Change Stitch Type
- Change Thread Brand
- Basting
- Color Resequence
- Stitch Design as Single/Multi-Color
- Personal Memory for Saving Embroidery Designs
- Programmable Jump Stitch Cutting
- Smart Secure
- Invisible Secure
- Centering the Embroidery Design
- Switch Unit of Measurement
- Multi-Format Reading
- Embroidery Design Formats: EXP, DST, PES, PEC, JEF, SEW, PCS, XXX
- Embroidery Design Import/Export via USB Interface
- View Stitch-Out Time, Thread Colors, Size, Stitches
- Embroidery Sequence Control
- Position Recall
- Embroidery Module M (SDT)
Included Accessories
General:
- 4 Bobbins in the Accessory, 1 Bobbin in the Bobbin Case
- 2 Foam Pads
- Selection of Needles
- Soft Cover with Pocket
- 3 Spool Discs
- Seam Ripper
- Height Compensation Tool
- Screwdriver Red
- Brush
- Power Cable
- Foot Control
- Freearm Slide-on Table
- Knee Lifter/Free-Hand System (FHS)
- Touchscreen Pen for 4 and 5 Series
- Sewing Machine Oil
- BERNINA Accessory Box
- Embroidery Module M (SDT)
Accessory Feet:
- Reverse Pattern Foot #1
- Overlock Foot #2
- Buttonhole Foot with Slide #3A
- Zipper Foot #4
- Open Embroidery Foot #20C
Additional Information
- Dimensions: 18.1″ x 7.9″ x 12.9″
- Weight: 24.2 lbs
- Workspace Height: 4.3″
- Sewing Space to the Right of the Needle: 8.5″
- Centrally Located Color Touch Screen: 4.3″ / 10 cm
- Embroidery Area: 15.7″ x 5.9″
BERNINA 535 E’s Warranty:
- 2 Years on electrical parts
- 5 Years in the case of printed circuit boards
- 20 Years in the case of mechanical parts from the date of purchase of the product5″
